Top-Roll Gymnasium Curtain

Top-Roll Gymnasium Curtain

UPC: 842299103822

Product Number: 4040XL

Product Weight 0.00lbs / 0.00kgs
Warranty 1 Year on Vinyl & Motor; 5 Years on Structure
Product Unit EACH

Top-Roll Gymnasium Curtain

Product Number: 4040XL

UPC: 842299103822

Product Description

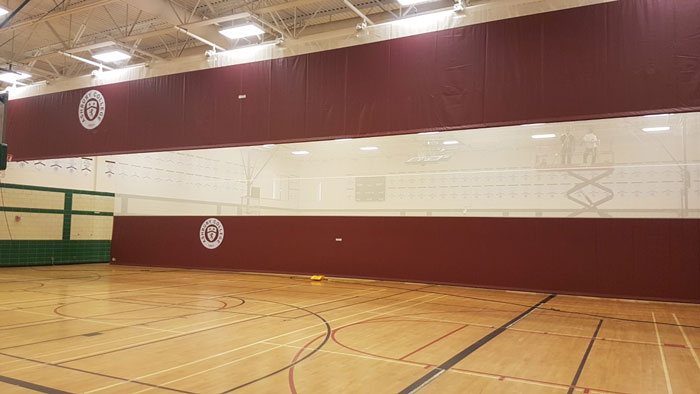

Gymnasium divider curtains allow facilities to maximize gym space for multiple games and multi-sport activities. The 4040XL Top-Roll Curtain is a great solution for building with height clearance issues or ceiling obstructions.
  • Premium electrically-operated curtain allows for maximum clearance over the court for facilities with low ceiling units or obstructions
  • Uniquely engineered to operate without belts, cables, exposed wires, or guide systems

Additional Info

The 4040XL TOP ROLL GYM DIVIDER CURTAIN provides a solution for those facilities with height clearance issues .This low profile divider curtain is designed to operate without belts, cables, exposed wires or guide systems. Fabric rolls within 13.5" of ceiling overhead for maximum clearance. Innovative and extremely quiet internal tubular motor with all electrical components neatly packaged inside the drive tube. Newly designed expandable roller system. Larger drive tube with vented ends for cooling of the motors. 19 oz. or 22oz. vinyl lower section and 9 oz. vinyl coated mesh upper section. Curtain has welded seams, fully padded bottom batten, and no exposed hardware. Mounting assemblies allow for easy installation and leveling. Clean look with no wires or cables exposed. Internal driveshaft motors enable lower power requirement and lower torque to move with similar speed as standard external motors. Standard motors pull 15 amps, ours pulls only 3.5 amps. Internal motors allow for larger variation of building configurations with space constraints. Increased diameter aluminum drive pipe for speeding up the roll time and prolonging curtain vinyl life. New ball bearing roller assembly designed with longer rollers to distribute the vinyl load, reducing stress on the material Hardened steel rollers eliminate dirt buildup and tracking marks on vinyl that wood or rubber rollers create.

Additional Specifications

Brand PSS
Product Color VARIES
Product Material STEEL/VINYL/NYLON
Country of Origin US

Shipping Info

Shipping Method Truck
